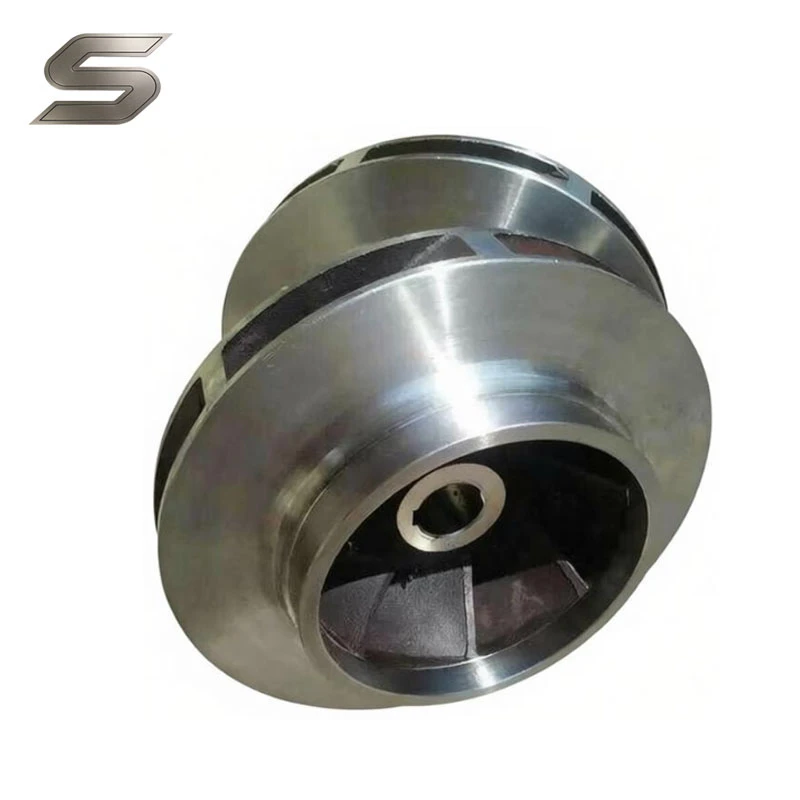

Product Overview
When the medium is corrosive or has specific hygiene requirements, ordinary sand cast iron impellers or cast steel impellers are prone to rust and perforation, failing to meet the long-term operating needs of the pump. In such cases, investment cast stainless steel pump impellers play an irreplaceable role.
Stainless steel impellers can operate for extended periods in humid, weakly acidic, weakly alkaline, chemical, seawater, and chloride-ion-containing media without corrosion and do not release iron ions that contaminate the medium.
The investment casting process produces stainless steel impellers with smoother inner flow channels, resulting in lower flow resistance and higher pump efficiency. The smooth surface also reduces wear of impellers, extending their service life.
Advantages
1. Higher Pump Efficiency
The inner cavity of a closed impeller flow channel cannot be machined; its surface roughness is determined by the casting process.
The inner wall roughness of the flow channel of an investment cast stainless steel pump impeller can achieves a surface roughness of Ra 3.2–6.3 μm, while that of a conventional sand-cast iron or steel impeller is typically Ra 25 μm.
Under the same flow rate and head, investment cast stainless steel impellers can reduce the energy consumption of the pump motor.
2. Higher Dimensional & Hydraulic Accuracy
Investment casting is less prone to problems such as mold expansion, misalignment, and sand erosion that occur during sand casting. This significantly reduces the probability of uneven blade wall thickness, positional misalignment, or flow channel deformation in the impeller castings.
Investment casting can precisely replicate the designed blade profile and cross-sectional dimensions, making the actual performance of the assembled pump closer to the design values.
3. Lower Noise and Vibration
The smooth flow channel can reduce internal eddies, local backflow and pressure pulsation, effectively reducing noise and vibration during impeller operation.
At the same time, its high dimensional precision minimizes the size of trim holes required for G2.5/G6.3 dynamic balance tolerance, further reducing noise and vibration.
4. Resistant to scaling and material deposition
Smooth inner walls of the flow channel are less likely to attract impurities and form scale, reducing the risk of reduced pump flow rate caused by decreased flow-passage cross-sectional area due to scale buildup.
What is the Best Material for Pump Impeller?
Before answering this question, it is essential to clarify the operating medium, chloride ion content, temperature, wear and corrosion conditions, and your target procurement cost for the investment cast stainless steel pump impeller; a change in any of these factors could influence the choice of impeller material.
Chemical Centrifugal Pump Impellers: CF3M or 2205
- CF3M (316L) is suitable for general-purpose chemical centrifugal pumps handling mildly acidic or alkaline media with low to moderate chloride ion concentrations.
- For chemical applications involving moderate to high chloride ion levels and moderate erosion-corrosion, CF3M is unsuitable; the more costly 2205 duplex stainless steel should be used instead.
- It should be noted that 2205 duplex stainless steel is not suitable for strongly reducing acidic media.
Sewage / Sludge Pump Impellers: CF8 or CF8M
- For mildly corrosive media such as lightly contaminated sewage or wastewater with low chloride content, a cost-effective CF8 (304) stainless steel impeller is sufficient.
- When the medium consists of sewage containing chloride ions and trace amounts of chemical pollutants, a CF8M (316) impeller offers a longer service life.
Seawater Desalination / Offshore Pump Impellers: CA6NM
CA6NM (13-4 martensitic stainless steel) features high hardness-reaching HRC 22–26-and excellent cavitation resistance.
It is suitable for impellers in seawater pumps and first-stage impellers in high-head pumps.
Food & Pharmaceutical Fluid Pump Impellers: CF8, CF8M, CF3M with mirror polished surface
- CF8 stainless steel is selected for impellers in standard food-grade pumps.
- CF3M investment cast stainless steel pump impeller performs better in handling pharmaceutical or saline food media.
- Impellers for food pumps generally require mirror or electropolishing of the flow channels; for sanitary pumps, mirror polishing is mandatory to meet sanitary standards.
Mining Slurry Pump Impeller: 2507 (CE3MN) wear-resistant super duplex stainless steel
The key advantage of 2507 super duplex stainless steel is its resistance to chloride-induced corrosion; with a PREN value of 42 higher than that of the aforementioned materials, it effectively mitigates the risk of stress corrosion cracking in environments such as high-temperature seawater, desalination systems, offshore platforms, high-chloride chemical media, and chloride-containing slurries.
It should be noted that 2507 duplex stainless steel impellers are unsuitable for applications involving severe abrasive wear, such as slurries containing large, hard particles; in such cases, high-chromium white cast iron impellers produced via sand casting or lost-foam casting should be selected instead.
Applicable Pumps for Our Investment Cast Stainless Steel Pump Impeller
Chemical Centrifugal Pumps
- IH-series horizontal stainless steel chemical centrifugal pumps
- FB/AFB corrosion-resistant centrifugal pumps
- Magnetic drive centrifugal pumps
Sanitary Pumps (Food & Pharmaceutical)
- Stainless steel pumps for milk, beverages, and fruit juice; sanitary centrifugal pumps
- Purified water pumps, pharmaceutical transfer pumps, medical dosing pumps
Self-Priming Stainless Steel Pumps
- Corrosion-resistant stainless steel self-priming pumps
- Chemical self-priming pumps
- Self-priming booster pumps for well water
Inline Centrifugal Pumps (Mid-to-High-End Models)
- ISG/IRG vertical inline pumps
- High-end ISW horizontal inline pumps
Stainless Steel Submersible Sewage Pumps
- Corrosion-resistant 304/316 submersible sewage pumps
Marine & Seawater Aquaculture Pumps
- Marine centrifugal pumps
- Bilge pumps
- Seawater circulation pumps
- Seafood farming circulation pumps
Vortex Pumps / High-Pressure Low-Flow Pumps
- High-pressure vortex pumps
- Boiler feed pumps
Other Specialty Pumps
- Hot water circulation pumps
- Multistage stainless steel centrifugal pumps
High‑Grade Impeller Production Standards
The production of investment cast stainless steel pump impellers involves a great many steps, including wax pattern injection, silica sol multi-layer shell making, melting & casting, heat treatment, CNC machining, NDT, dynamic balancing, and finished product inspection.
Every step is strictly monitored and controlled by dedicated professional workers to prevent defective products from being delivered.
Ensuring the consistent quality of stainless steel pump impellers relies on comprehensive inspection; we conduct thorough testing covering material composition, mechanical properties, hardness, dimensions, casting quality, and surface roughness, and provide detailed inspection reports.
Mold & Equipment
We develop wax pattern tooling for investment cast stainless steel pump impellers, employing solutions such as multi-slide radial core pulling, segmented wax pattern bonding, and ceramic cores to achieve precise molding of complex flow channels.
Our foundry is equipped with wax injection equipment, an automated shell-making line, a vacuum medium-frequency melting furnace, a dedicated solution heat treatment furnace for stainless steel, and sandblasting finishing equipment.
Our machining workshop houses multiple CNC machining centers, wire-cut EDM machines, and specialized dynamic balancing machines for impellers.
Our laboratory is equipped with a full suite of testing instruments, including a direct-reading spectrometer, universal material testing machine, hardness tester, impact testing machine, and equipment for PT (dye penetrant) inspection.
