Product Introduction
Why do your valve bodies still suffer from corrosion quickly even after upgrading to stainless steel material?
Why do leakage and cracking still occur on your valve bodies despite sufficient wall thickness design?
These problems are not necessarily caused by design flaws. In most cases, they stem from hidden manufacturing defects in your stainless steel valve bodies.

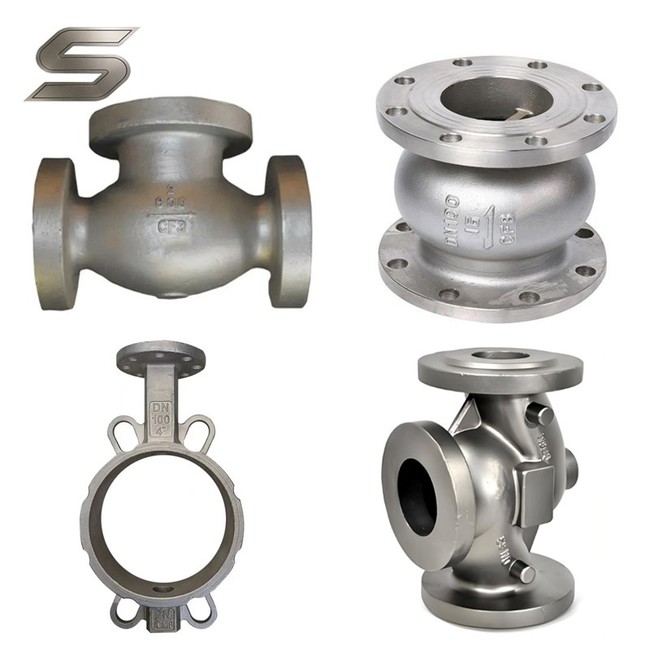

Our investment cast stainless steel valve bodies adopt standard stainless steel grades including CF8 and CF8M. With professional silica sol investment casting technology, standardized solution heat treatment, acid pickling and passivation processes, as well as precise professional testing equipment, we strictly control core indicators such as residual stress, internal shrinkage porosity, and internal surface roughness. Eliminating all hidden defects that affect the service life of valves, our products deliver excellent high-pressure resistance, superior corrosion resistance and high surface smoothness, enabling long-term and stable operation under harsh working conditions.
Our Core Manufacturing Advantages
Eliminate Service‑Limiting Defects
Our philosophy for defect control of investment cast stainless steel valve bodies is to prioritize process prevention, with multi-stage inspection as release guarantee.
Drawing on technical expertise and practical experience, we complete the entire process design, covering gating and riser layout, tree assembly, shell making, melting and pouring, heat treatment, to pickling and passivation. We create process cards for each step, solidify process parameters, and strictly control raw materials, auxiliary materials, and production execution.
Compared to the production model that fully relies on final inspection, we reduce the probability of valve body defects from the source, increase the pass rate, reduce scrap losses, and deliver high-quality valve body castings in the shortest possible time.
Qualified Stainless Steel Casting Grades
For our ASTM A351 CF8, CF8M, CF3 and CF3M valve‑body castings, we reject scrap stainless steel with unknown origin or unspecified chemical composition. We use only virgin steel bar stock from steel mills plus in‑house same‑grade return scrap with a controlled recycling ratio. The proportion of recycled material will be controlled by spectral analysis to ensure all elemental contents are within the standard range, to guarantee compliant chemical composition.
Beyond qualified composition, we control the δ-ferrite ratio and heat treatment process, ensuring that the investment cast stainless steel valve bodies not only meet laboratory test reports but also achieve simultaneous control over composition, metallographic structure, mechanical properties, and corrosion resistance.
Therefore, they can reliably deliver the designed performance of their respective grades under working conditions such as chloride‑ion media and alternating pressure.
Layered Hidden Defect Control
After mold completion, we produce valve body prototypes. Section inspection combined with NDT is applied to evaluate subsurface hidden defects. Mass production is only authorized once prototypes pass validation and confirm process feasibility.
During mass production, the valve body blanks undergo first‑article inspection and random sampling to monitor for production anomalies and reduce the risk of defective products flowing into subsequent processes.
Before shipment, non-destructive testing is performed on the finished product as the final verification step of quality control, confirming that the quality control measures implemented in each step are truly applied to the stainless steel valve body.
Smooth Internal Surface · Optimized Fluid Performance
We have many specific measures to ensure a smooth inner wall, improving the Cv coefficient, corrosion resistance, and service life of investment cast stainless steel valve bodies.
For example:
- Fine‑grained #325‑#400 zircon flour delivers a high‑quality smooth shell surface;
- The tree‑assembly is designed for coating immersion at a proper angle to expel excess coating out of valve‑body cavities. Otherwise, air bubbles will cause pitting and dents on casting inner walls;
- The tree assembly is rotated to sling excess coating out of inner cavities, avoiding coating build‑up that creates ripples and run‑offs.
Complete Investment Casting Line for Stainless Steel Valve Bodies
Our advantages are not only reflected in the high performance of investment cast stainless steel valve bodies, but also in our advanced production equipment, which gives us strong manufacturing capabilities: we can undertake the casting of large-size stainless steel valve bodies, deliver large batch orders quickly, and complete comprehensive internal self-inspection.
Wax Injection Workshop
Our wax injection workshop has 12 sets of automatic wax injection machines, capable of producing valve bodies up to 800 mm X 600 mm in size. A single machine can produce 200-400 molds per shift.
All automatic wax injection machines can precisely adjust the injection pressure, wax temperature, injection speed, and holding time.
Even thin-walled valve bodies with complex internal cavities can be stably molded, ensuring dimensional stability and a smooth surface between wax patterns.
Shell Making Line
The shell-making line uses automated robots to speed up production.
After seven dip coatings and seven drying processes, the ceramic shell of the valve body has a smooth inner surface and high strength.
Consequently, the investment cast stainless steel valve bodies deliver excellent surface finish and low deformation tendency.
Medium‑Frequency Melting & Pouring Station
Equipped with multiple 750kg, 1ton, and 2ton medium-frequency melting furnaces, we can meet both small-batch valve body prototyping needs and large-volume casting requirements.
The ladle is controlled by a hydraulic arm, allowing molten stainless steel to be poured from the melting furnace into the valve body shell more quickly, better ensuring casting temperature and reducing shrinkage cavities and slag inclusions.
Heat‑Treatment Furnace
We have two heat treatment furnaces: one is a small-capacity sample production furnace, specifically for the trial production of new valve body samples; the other is a large-capacity heat treatment furnace, specifically for mass production, capable of loading multiple small investment cast stainless steel valve bodies at once, as well as a certain number of large, heavy-duty investment-cast stainless steel valve bodies.
Insufficient production capacity of the heat treatment equipment will not affect the sample making and production schedule of stainless steel valve bodies.
Physical & Chemical Laboratory
Our in-house laboratory is equipped with spectrometer, hardness testers, metallographic microscopes, and Universal Testing Machines, enabling us to quickly complete various tests and ensure that the valve body's material and performance fully meet technical standards.
Quality Inspection Area
The quality inspection area is equipped with a quality inspection platform, non-destructive testing equipment, and pressure testing equipment, which allows for comprehensive inspection of finished valve bodies except material composition and mechanical properties.
Hidden Manufacturing Points Impacting Valve Body Performance
Investment casting of valve bodies is a complex process involving many steps. If any step is not carefully handled, it will directly affect the actual performance of the valve body.
The following are easily overlooked steps:
Investment cast stainless steel valve bodies feature complex inner geometries, which are mostly realized by mold slide structures.
The slider will leave gaps and flash at the parting line of the wax pattern. If these are not repaired, joint seams will appear on the inner wall of the valve body and disturb liquid flow.
After dewaxing, unsintered shells shall be fired and poured as soon as possible to avoid prolonged exposure to moisture from the air. Such moisture cannot be eliminated even by subsequent firing.
Upon pouring, the moisture decomposes under heat to generate hydrogen, which creates subsurface porosity in the valve body.
Although the subsurface porosity may not affect the valve body pressure test result, it will gradually propagate under long-term service, and finally cause valve‑body leakage.
Shot blasting with carbon steel can embed tiny carbon steel particles into the valve body surface, causing iron ion contamination.
These carbon steel particles adhering to the valve body surface are highly susceptible to rust, which in turn induces and accelerates the corrosion of the stainless steel substrate.
Iron chips inside the investment cast stainless steel valve bodies are hidden and difficult to detect.
If they are not cleaned properly, they will scratch the sealing surface when the valve is running, causing valve leakage.
Valve bodies typically need to be tested for pressure resistance using either air or water pressure, and both pressure tests require contact with water.
If the valve body surface is not dried promptly after the pressure test, residual moisture can easily cause pitting corrosion.
Visualization Technology Empowers Precision Casting of Valve Bodies
During the development of new investment cast stainless steel valve bodies, we utilize 2D and 3D visualization tools to handle structural design, validate casting systems, and conduct quality inspections.
Precision 2D CAD Drafting and Dimensional Verification
Before mold design, we use AutoCAD and CAXA 2D drafting software to cross-check all dimensions on the valve body drawings, thereby preventing mold modifications caused by annotation errors.
Once the design is finalized, the drawings are converted into process-specific documents, such as raw casting drawings and machining drawings, with key dimensions and critical tolerances clearly marked to facilitate rapid identification, management, and inspection on the production floor.
3D Modeling and Structural Optimization
Equipped with SolidWorks, UG, and CATIA 3D modeling software, we create 1:1 digital models of stainless steel valve bodies based on customer-provided 2D drawings.
These 3D tools enable rapid analysis of valve body structures and wall thicknesses, allowing us to identify and eliminate casting risks, thereby enhancing the density and pressure-bearing capacity of the investment-cast stainless steel valve bodies.
They also play a vital role in mold design and CNC machining programming.
3D Casting Simulation
We use ProCast professional casting simulation software to model and analyze the casting system design, covering molten steel filling, solidification shrinkage, and temperature distribution.
This allows us to anticipate and mitigate production defects such as shrinkage cavities, gas porosity, and deformation, significantly improving the production pass rate and batch consistency of the investment cast stainless steel valve bodies.
3D Scanning
Laser 3D scanning enables us to compare finished valve bodies against 3D design data, verifying the dimensional accuracy of complex surfaces and hard-to-measure features, thus ensuring comprehensive quality control for the stainless steel valve bodies.
