Where to buy customized cast brass drop-out fuse parts? Shata will be your best choice! We produce all the cast brass parts for your drop-out fuse, and our custom-made cast brass drop-out fuse parts can effectively ensure the normal operation of drop-out fuse, enhance its performance and extend its lifetime.

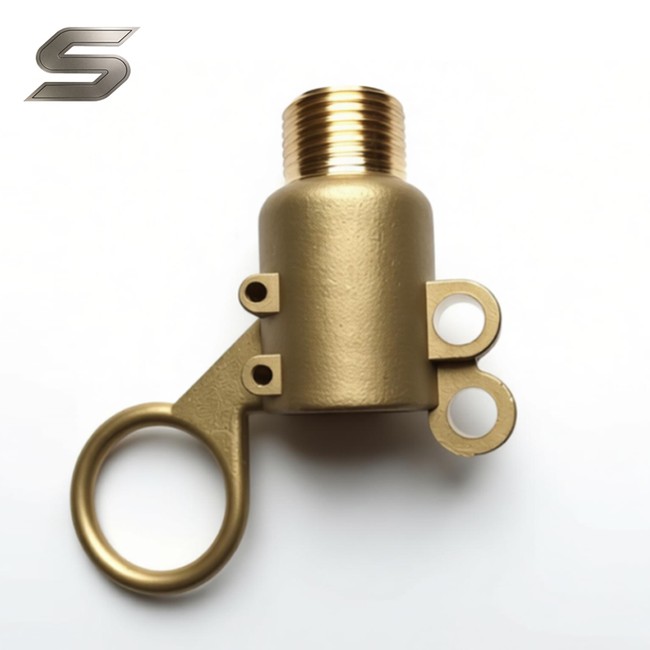

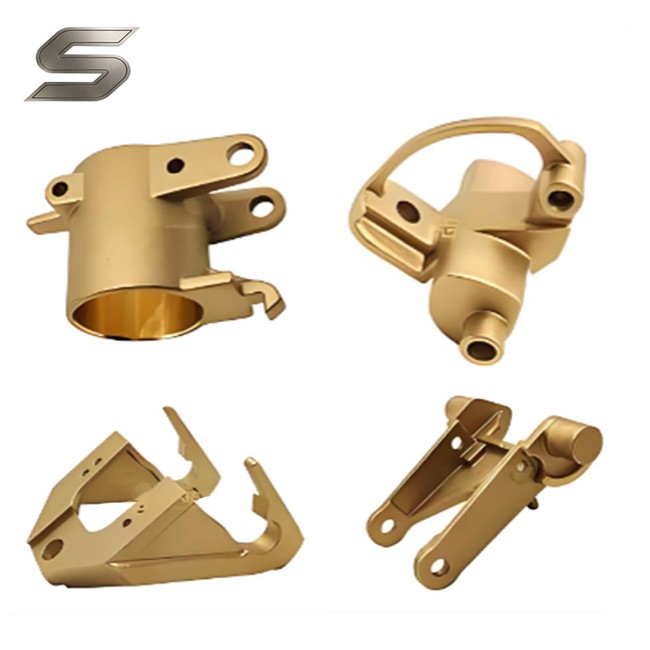

Cast Brass Parts for Drop-Out Fuse
Cast brass parts are widely used on drop-out fuses' critical section, ensuring seamless operation and optimal protection of the fuse.

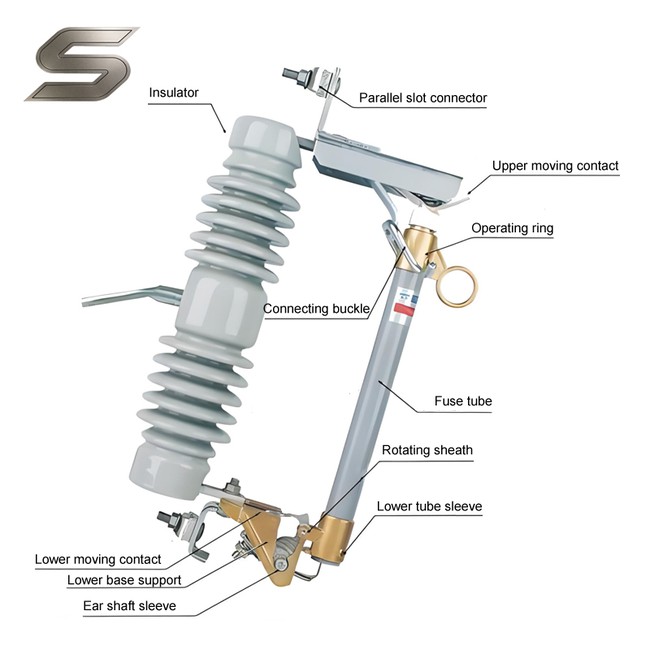

The main cast brass parts used for drop-out fuse as below:
1. Operating Ring: The operating ring is a manual control mechanism, which allows operator easily connect or disconnect the fuse after resetting or replacing after tripping.
2. Lowe Tube Sleeve: It's a connection and supportive part for fuse tube, providing structural support for fuse tube, firmly connecting fuse tube and lower base support.
3. Lower Base Support (also known as fuse hinge, switching mechanism, or toggle mechanism): enable the fuse to drop out.
Our Production Technology for Cast Brass Drop-Out Fuse Parts
Shata uses low-temperature wax, composite shell silica sol precision casting for cast brass drop-out fuse parts. We are the best low-temperature wax, composite shell silica sol casting manufacturer in Hebei, China.
Compared with medium wax silica sol casting, our casting technology has lower material cost, shorter shell production time, and high production efficiency. Though its surface roughness (Ra6.3 -12.5μm) is a little higher than medium wax silica sol casting (Ra3.2 – 6.3μm), its still much better than other casting technologies such as sand casting, shell molding, etc.
Meanwhile, the high precision of our brass castings can meet CT6-CT8. No need extra machining process for the assembly holes or surfaces of cast brass drop-out fuse parts, which further saves the machining costs.
Though the drop-out fuse is an outdoor electrical product, a good surface can bring you better sales, more stable customers, and help you build a high-end brand. Customize cast brass drop-out fuse parts from Shata, can help you reduce costs by 20% to 30%, while ensuring the smooth surface quality and high precision.
Our After-Sales Commitment for Custom Precision Cast Brass Drop-Out Fuse Parts
Shata has confidence in the quality of our cast brass drop-out fuse parts, as we trust our internal quality management system, which has been certified by ISO 9001 and can meet international standards.
For all the customized cast brass drop-out fuse parts purchased from Shata, including operating rings, lower tube sleeves, lower base supports, and any other components:
We promise they are free of surface detects, such as scratches, burrs, cracks, porosities, internal defects, etc.
We provide a 3-year guarantee period from the date of delivery.
If any cast brass drop-out fuse parts break due to internal defects during the guarantee period, Shata will provide free replacement with new products.
