Product Description
Certified with ISO 9001, Shata Machinery specializes in custom Hadfield steel casting production, supplying made-to-order manganese steel cast wear parts for mining, metallurgy, cement, construction and port industries, delivering stable, cost-effective OEM casting solutions for global buyers.
Technical Parameters
| Item | Customization Range |
| Product Name | High Manganese Steel Castings |
| Other Names | Hadfield steel castings, high Mn steel castings |
| Material Grades | GX100Mn13, GX120Mn13, GX120MnCr13-2, GX120Mn18, GX120MnCr18-2, GX120MnNi13-3, GX120MnMo7-1, GX110MnMo13-1, GX90MnMo14, ASTM A128 Grade A/C, X120Mn12 / A128-A, full grades customizable |
| Casting Processes | Resin sand casting; green sand casting; lost foam casting; shell molding; investment casting |
| Dimensional Tolerance | CT6-CT12 |
| Weight Range | 0.1kg - 2000 kg |
| Initial Matrix Hardness | 180–240HBW as-cast |
| Impact Hardened Hardness | ≥500HBW after continuous friction & shock load |
| Adaptable Medium | Granite, basalt, iron ore, coal, limestone, cement clinker, sand, slag, metal scrap, and other mining & cement wear parts |
| Working Environment Media | Dry dust, low-temperature flue gas, neutral weak corrosive slurry, magnetic mineral mixture |
| Environment Limitation | Not suitable for strong acid long-term immersion |
Core Key Advantages
- Outstanding Work-Hardening Performance: Original hardness is around 200HBW; under continuous impact and friction, surface hardness quickly rises above 500HBW, while the internal matrix remains high toughness to avoid fracture.
- Superb Impact & Abrasion Resistance: Single-phase austenite structure prevents brittle cracking under heavy shock, ideal for severe wear & impact working conditions.
- Non-Magnetic Property: Suitable for equipment operating in magnetic interference environments.
- Custom Alloy Optimization: We add Cr, Mo, Ni, W elements to upgrade anti-wear, anti-crack and high-temperature performance based on client working conditions.
Available Product Types & Industry Applications
Mining & Mineral Processing
Typical Parts: Jaw plate, cone liner, ball mill liner, hammer blow bar, grinding partition board, mine car track shoe, chute lining
Working Condition: Heavy impact + abrasive wear from granite, iron ore, gold ore, bauxite
Cement & Building Materials
Typical Parts: Clinker crusher hammer, vertical mill liner, raw material grinding lining plate, limestone impact plate
Working Condition: Continuous high-frequency impact with cement clinker, limestone, coal gangue
Construction & Road Machinery
Typical Parts: Excavator bucket tooth, loader tooth, road milling machine lining, stone breaking equipment wear blocks
Working Condition: Impact wear of gravel, asphalt, concrete blocks in road construction sites
Railway Transportation
Typical Parts: Railway frog, crossing casting, track anti-collision blocks Working Condition: Recurring impact from train wheels, non-magnetic requirement for signal system compatibility
Metallurgical & Sintering Plant
Typical Parts: Sinter machine lining, ore feeding chute liner, hot material anti-impact castings Working Condition: Medium impact with high-temperature alternating heat load
Sand & Aggregate Making
Typical Parts: Vertical impact crusher lining, sand washing tank anti-wear plate
Working Condition: Medium impact abrasion of quartz sand, river stone
Our Heat Treatment Technology
High manganese steel castings must be heat treated to improve their performance before use.
We do precise and smart temp control heat treatment-water quenching for all of our high Mn steel castings. Its main procedure is:
- Heat to 1050–1100℃
- Hold temperature 2-4 hours
- Rapid water quenching to get single-phase supersaturated austenite structure, which is the base of high work hardening and toughness.

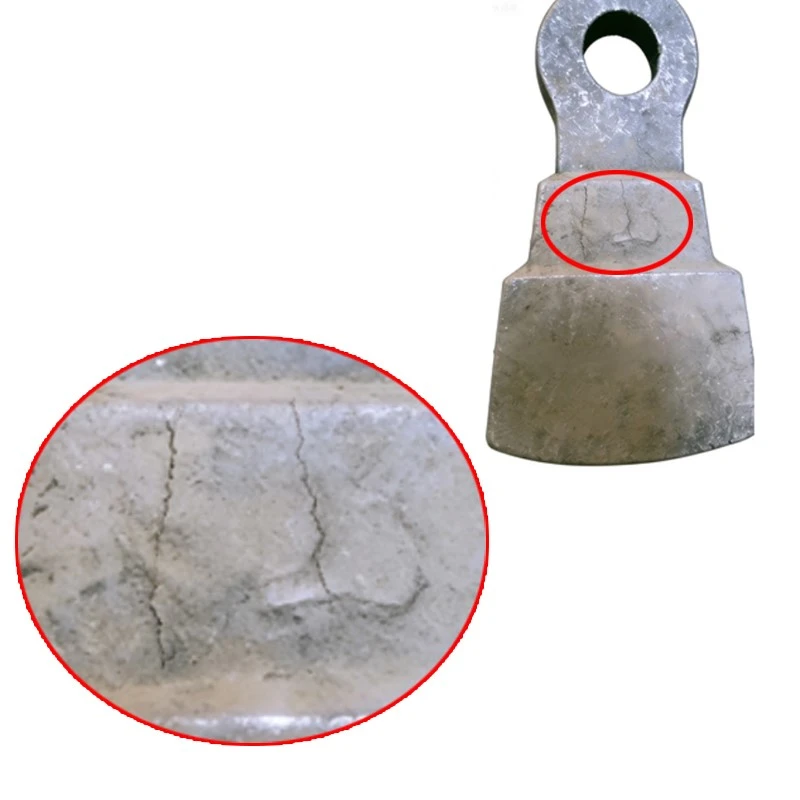

Common Cracking Causes & Preventive Solutions
Below is the list of reasons may cause cracks on high manganese steel castings, according to our long-term manufacturing experience.
|
Cause Category |
Causes |
Prevention Measures |
|
Structural Design |
Large wall thickness change |
Control thickness difference less than 3mm, add big enough fillets (internal R≥5mm, external R≥3mm) |
|
Casting |
Excessively high or low casting temperature |
Precisely control casting temperature with correct range |
|
Wrong pouring speed |
Adjust pouring speed |
|
|
Unexperienced design of casting gate and risers |
Optimize mold design, using side risers instead of top riser |
|
|
Wrong operation of gate and riser cutting |
Using easy cutting riser; using saw cutting instead of flame cutting |
|
|
Heat Treatment |
Fast temperature change, large temperature difference between castings and furnace |
Preheating 1-1.5 hour below 650℃, then rise the temperature. Slower heating: ≤30-40℃/h when temperature ≤650℃; ≤50-60℃/h when temperature ＞650℃ Rapidly immerse castings into water |
Shata Machinery Advantages
- Complete ISO 9001 Quality Control System
- Powerful Customization Capacity
- Cost-Optimized Engineering Support
- Fast-Reply Communication
- All-Round Quality Inspection
- Mature Export Service
