Product Description
Our cast steel clamps are custom casting components specially engineered for railway/rainlroad fastening and mechanical clamping systems.
With premium cast steel alloys, optimized casting technology and strict metallographic control, our cast steel clamps are integrated cast with excellent structural rigidity, reliable mechanical stability, superior fatigue resistance and strong impact resistance, serving as core fastening parts to secure rails and matching track components steadily.
High casting precision makes our clamps perfectly fit with fastening accessories, maintaining stable and lasting clamping preload without loosening or displacement during service.
After fine-tuned surface treatment, our clamps achieve excellent anti-corrosion performance, adapting to harsh outdoor working conditions including high temperature, low temperature, rain and salt fog.
Technical Parameters
| Item | Specifications |
| Product Name | Cast Steel Clamps |
| Casting Material | WCA, WCB, WCC, GE300, CF8, CF8M, Malleable Cast Iron, 42CrMo |
| Casting Process | Investment casting, sand casting |
|
Product Types |
Rigid Clamp, Flexible Groove Coupling Clamp, V-Clamp, Safety Clamp, Wire Rope Clamp, Seismic Support Clamp |
|
Installation Method |
Groove connection, quick-install flange, bolt locking, wedge self-locking |
| Surface Treatment | Hot-Dip Galvanized HDG, Electro Galvanized WZP, Powder Coating, Passivation (SS Cast) |
|
Model Series |
Non-standard, custom produced according to drawing |
|
Single Piece Weight |
0.1kg ~ 100 kg/pc |
|
Max Size |
1000*1000mm |
|
Casting Tolerance Grade |
CT6 for investment casting, CT10 for sand casting |
|
Load Bearing Capacity |
As designed |
|
Operating Temperature Range |
Carbon steel -20℃~120℃; alloy steel -29℃~450℃; stainless steel -40℃~200℃ |
|
Anti-corrosion Grade |
Indoor dry, outdoor rainy, weak acid and alkali, seawater environment |
| Working Condition | Underground damp corrosion, heavy load impact, high-temperature environment, weathering resistance in open-pit mines, explosion-proof matching, high-frequency disassembly and assembly |
|
Vibration & Seismic Resistance |
Suitable for continuous vibration conditions, compliant with NFPA seismic bracing standard |
|
Surface Finishing |
Red epoxy spray paint (Fire protection standard), Black anti-rust primer, Hot-dip Galvanized (HDG), Electro-galvanized, Stainless steel pickling & passivation |
|
Certification |
ISO 9001, 14001, 45001 |
|
Packaging |
Fumigation-free plywood case, carton + plastic bag, steel pallet |
Manufacturing Process
Our Quality Control
Certified with ISO 9001 Quality Management System, we enforce stringent quality control across every production stage, covering mold design & manufacturing, wax pattern molding, tree assembly, shell mold fabrication, melting & pouring, heat treatment, machining, and final surface finishing.
Standardized inspections are carried out at all critical checkpoints to rigorously regulate casting quality, dimensional accuracy, mechanical properties, surface finish and product consistency.
We guarantee all finished products comply with customers' technical specifications, and consistently supply stable and reliable investment cast steel clamps.
Advantages of Shata's Cast Steel Clamps
- High precison
We adopt investment casting(lost wax casting), can reach Ct4-Ct6 (min ±0.13mm) for raw castings, no need machining for most of cast steel clamps, saving machining cost
- Full-process strict quality control, full QC reports provided
Chemical composition, mechanical test (tensile strength, yield strength, elongation, impact), dimensional report, hardness, surface treatment thickness...

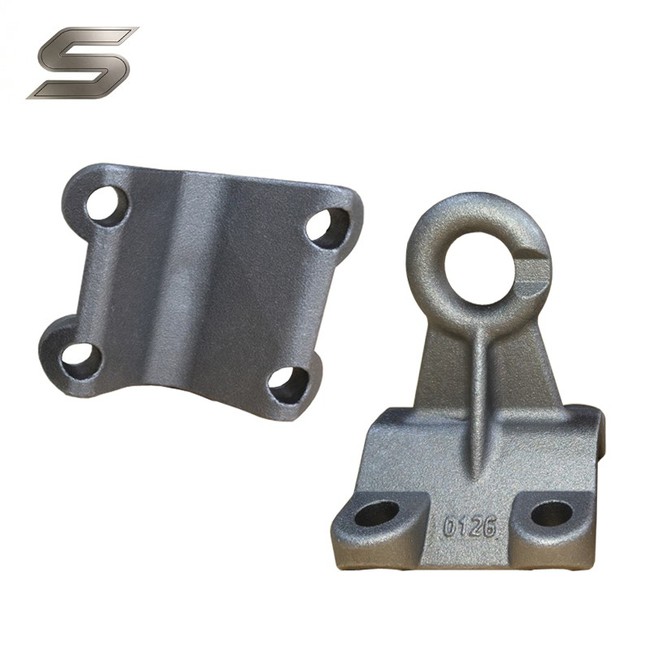

- Superior surface finish
Our investment casting ensures the most smoothest surface- Ra6.3 for raw castings, no other casting process can be better than this
- High strength & load bearing
Tensile strength of our WCB cast steel clamps ≥570MPa; 42CrMo alloy steel clamps are even higher, ≥1080MPa, delivering doubled load capacity and superior anti-fatigue performance for ultra-heavy working conditions.
- Impact resistance & durability
WCB carbon steel has Charpy impact energy ≥35J/cm², 42CrMo reaches ≥85J/cm², effectively avoid crack formation under frequent shock loads and achieves 3x longer service durability in high-vibration heavy-load scenarios.
- High adhesion surface finishing, rust-proof, corrosion-resistant and non-peeling
Our clamp surface coating achieves adhesion grade 1 (ISO 2409 cross-cut test), salt spray resistance exceeding 500 hours, no peeling, blistering or rust penetration under long-term humid and corrosive working environments.
Applications of Cast Steel Clamps
Our customized manufacturing service of cast steel clamps delivers one-stop solutions for fastening, positioning, protection and installation to industries including mining, power transmission and transformation, wind & solar new energy, railway catenary systems, construction machinery, steel structure & municipal pipeline engineering, metallurgical industrial furnaces, and port heavy-duty equipment.
Mining
Mine track fixing
Chute equipment clamping
Scraper conveyor locking and positioning
Underground ventilation & water supply pipeline reinforcement
Hydraulic support clamping
Belt frame and silo reinforcement for open-pit mines
Power Transmission
Tension fixing of high-voltage transmission towers
Overhead conductor & ground wire locking
Substation busbar fastening
Heavy-duty cable clamping in cable trenches
Wind turbine tower cable fixing
Solar bracket load-bearing clamping
Railway Catenary Wiring
Railway catenary positioning & fixing
Messenger wire locking
Railway signal cable clamping
Railway bridge pipeline reinforcement
Tower suspension fixing for electrified railways
Construction Machinery and Lifting
Large hydraulic pipeline locking for excavators, loaders...
Steel structure docking fixing
Equipment counterweight reinforcement
Chassis pipeline positioning for engineering vehicles
Steel Structure and Municipal Pipeline Engineering
Factory steel beam & column connection and fixing
Large-diameter industrial pipeline laying and reinforcement
Heavy-load fixing of engineering scaffolds
Municipal pipeline anti-loosening reinforcement
Metallurgy and Port Heavy Industry
High-temperature pipeline fixing for smelting furnaces
Frame locking of port conveying equipment
Structural reinforcement of large heavy-duty mechanical equipment
FAQ
Q: What is your MOQ for cast steel clamps?
A: 200 kg
Q: Are material and NDT test reports charged separately?
A: All are free for our in-house test reports. If need official reports from third party, they will be charged.
Q: Do clamps for railway catenary and high-voltage power lines meet anti-fatigue and anti-vibration industry requirements?
A: All fully comply with standards.
Q: Which finish do you recommend for underground, outdoor and coastal salt-spray environments?
A: Epoxy spray paint & Hot dip galvanizing
Q: Can we customize spray colors and thicker anti-corrosion coatings to extend outdoor service life?
A: Yes, all color codes per drawing, thicker coating layers according to customer requirements
Q: What files are required for non-standard customization? Do you accept DWG/STEP drawings and physical samples for mold development?
A: We accept DWG, STEP, PDF 2D/3D drawings. Physical samples without drawings
Q: Do you keep complete production and inspection records for every batch to realize full quality traceability?
A: Yer. We support 3 years records traceability
